brite-wheels
| Products | Brite Wheel 4 inch |
| Sizes | 4″ 100mm. |
| How to use | Used for cleaning and scrubbing the surface. |
| Numbe | Sphere |
| Materials | Fibre |
| Manufacturer type | Taiwan |
- General use for grinding and smoothing the surface
- Does not eat much workpiece
- Suitable for gap work, removing stains on the surface
ROLL SANDER WHEELS
Hairline Polishing Wheel 4″ #80 for polishing and creating patterns on stainless steel, aluminum, stone, wood and other materials
PTX Polishing Wheel, DRAWINGWHEEL 120×100 mm. Grit #80 Used for polishing, polishing wood to be smooth and creating patterns on the surface
The mesh inside the wheel is coated with a flexible coating to create patterns on the work surface and can also be used to polish steel or other materials
- Size: 120X 100MM
- Maximum speed (Max Speed): 2,100 RPM
- Diameter (Diameter): ( 120mm)
- Length (Length): 100 mm
- Inner hole (Hole): 19 mm.
Usage
Hairline polishing wheels are used for clear gloss and creating patterns on the surface. The polishing wheel can be used to polish wood to be smooth. Nylon web coated with elastic substance is used to create patterns on the workpiece surface.
Application Glazing or making polished grains on workpieces. Smoothening the surface of workpieces.
Nylon web coated with elastic substance is used to make the strips on workpieces and polish metallic objects or other materials.Warning: Use at recommended revolutions per minute (RPM).
Do not exceed maximum safe free speed (Max.PRM) under any circumstances.
|
Diameter |
Width |
Thickness |
GRIT |
|
4” |
13 mm., 1” |
3p, 7p |
*180 |
|
6” |
1” , 2” |
3p, 5p, 7p, 9p |
*120, *180 |
|
8” |
1”, 2” |
3p, 5p, 7p, 9,p |
*120, *180, *320 |
|
10” |
1”, 1 ½”, 2” |
5p, 7p |
*180 |
|
12” |
1”, 1 ½” 2”, 3”, 4”, 6”, 8” |
3p, 5p, 7p, 9p |
*120, *180, *320 |

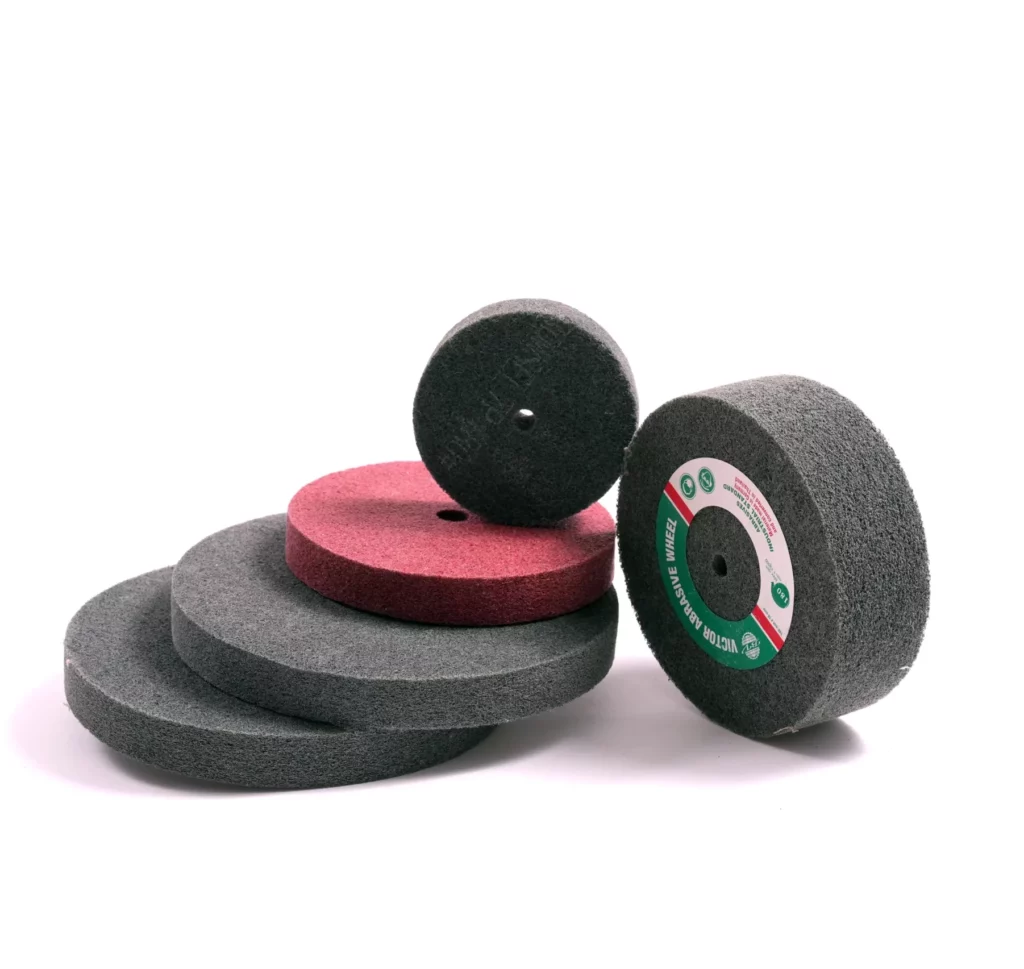

NON-WOVEN WHEEL
- Material: Nylon fiber, Polyester fiber, Mineral grain
- Roughness: No. 60, No. 80, No. 120, No. 180, No. 320 (or as ordered)
- Maximum speed 15.00 rpm
Scotch-Brite synthetic fiber polishing wheel Fiber Polishing Wheel can be called by many names such as gray Scotch-Brite polishing wheel, gray Scotch-Brite polishing wheel, gray Scotch-Brite synthetic fiber polishing wheel, gray synthetic fiber polishing wheel is a gray Scotch-Brite compacted for polishing metal surfaces or for modifying metal surfaces. It makes the metal surface clean and does not eat too much workpiece. Scotch-Brite wheels have different compaction depending on the number selected.
|
⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀ SIZE |
Number #120-#180 |
⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀ ORDER – NO. |
|
4″ x 1″ |
|
|
|
4″ x 1″ |
|
|
|
6″ x 1″ |
|
|
|
6″ x 1″ |
|
|
|
6″ x 2″ |
|
|
|
6″ x 2″ |
|
|
|
8″ x 1″ |
|
|
|
8″ x 1″ |
|
|
|
8″ x 2″ |
|
|
|
8″ x 2″ |
|
|
|
8″ x 2″ |
|
|
|
12″ x 2″ |
|
|
|
12″ x 2″ |
|
|
|
12″ x 2″ |
|
ROLL BRITE SANDER WHEELS
Scotch-Brite Polishing Wheel / Scotch-Brite Polishing Wheel mixed with sandpaper For
- Removing fins, removing edges
- Reconditioning the surface, preparing the surface
- Cleaning
- Removing rust
- Creating patterns
The color of the Scotch-Brite indicates the roughness of the Scotch-Brite. Green is medium roughness from #180-#240. The polishing time will be fast or relatively fast. The surface obtained from the polishing will be moderately rough, but 0 can be easily cleaned.
Red is fine from #320 – #400 for polishing that requires a relatively fine surface, small lines, easy to clean. Mixed with sandpaper to help erode the surface quickly, increasing the speed of polishing and creating patterns quickly.
